9 Heads Line Sander

The method of multi-point and multi-angle pressing material can be used to transport various surface shaped workpieces smoothly so as to prevent the workpiece from beating up and down and correct the workpiece's bending up and down.

Product Highlights
Highlights

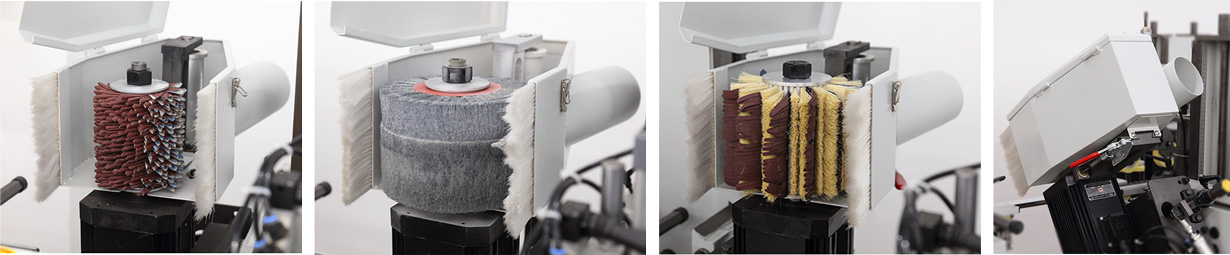

Specially for the imitation sanding of various lines the use of sand belts octagonal sand sheets sand cloth strips flying wing  wheels nylon wheels and other grinding materials to adjust the shape suitable for the sur the workpiece driven by the sand head motor. The workpiece is modeledand ground; For the local large plane on the linethe use of sand belt grinding can save material costs.
Effective sand at 95 % or more completely can replace the cumbersome manual grinding.


Product parameters
Parameter
Item Paramter
Processing Width Range 20-200mm
Processing thickness range 3-60mm
Feeding motor power
0.55kw×8,Frequency,Inverter
Working  pressure 0.6MPa
Total power 24.2KW
Overall dimensions 6300*1500*1550mm
