双头着色毛刷机

Double Headed Color Brush Machine

本机是专为竹木地板,家具等平面板材着色而设计。
This machine is specially designed for coloring bamboo and wood flooring furniture and other planar boards.

产品亮点
Highlights
皮带采用条纹系列,厚度3mm,输送采用铝合金外壳齿轮减速马达,采用变频器控制。
主体机架采用高强度工业铝型材40*160系列与3T冷板所焊接底架组装而成,升降采用燕尾槽上升下降,并附有高度计数器。

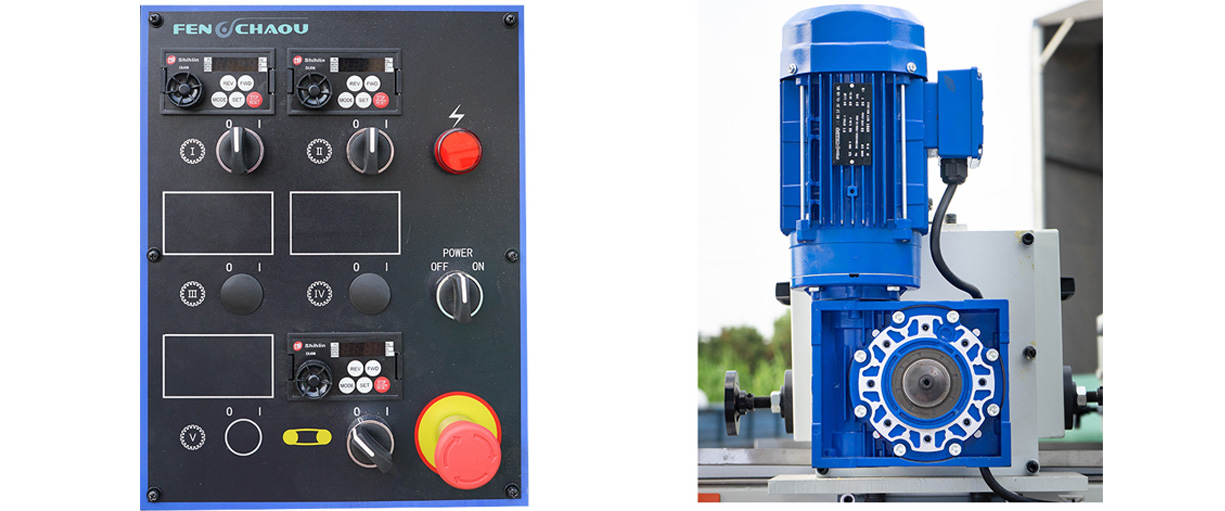

The belt adopts stripe series with thickness of 3mm. The transmission adopts gear deceleration motor with aluminium alloy shell and is controlled by frequency converter.
The main frame is assembled by 40*160 series of high strength industrial aluminium profiles and 3T cold plate welded underframethe dovetail trough is used for ascending and descending and a height counter is attached.


产品参数
Parameter
项目 Item 参数/Paramter
加工宽度 Working width 1300mm
加工厚度 Working thickness 3-80mm
输送电机功率 Feeding motor power 0.75kw,变频调速,Inverter
送料速度 Feeding speed 5-20m/min
总功率 Total power 5.9kw
外形尺寸 Overall dimensions 1500*2100*1650mm
