三灯UV干燥机

Three Lamps UV Dryer

广泛适用于一般平面涂装等使用UV光固化涂料后的瞬间干燥。
It is widely applied to the instant drying of general plane coating and other UV curable coatings
产品亮点
Highlights

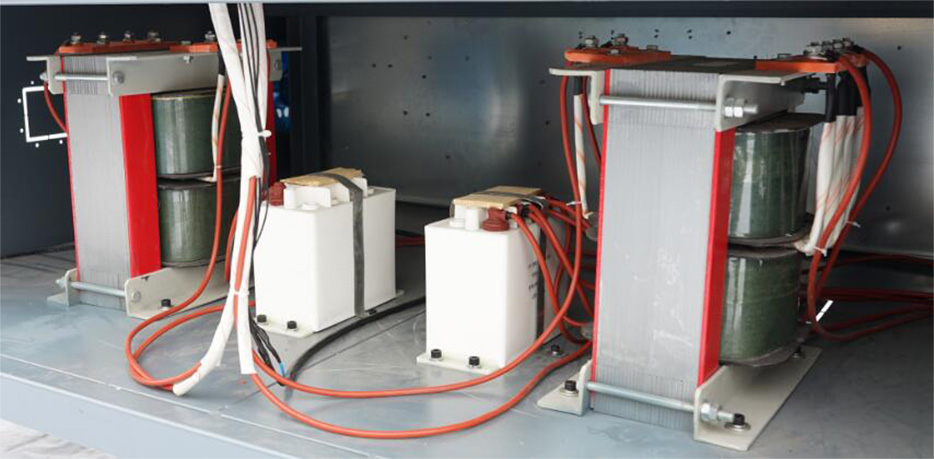

UV干燥系统采用进口石英管材质强紫外高压汞灯(如有色漆选配专用镓灯,加强干燥),配有铝制成聚焦反光灯罩,高容量专用电容器调节灯管的辐射能量设有独立散热离心风机装置。
灯箱内部通风良好,有效延长UV灯管,变压器及电容的使用寿命。

UV drying system adopts imported quartz tube material strong ultraviolet high pressure mercury lamp (such as special gallium lamp for non-ferrous paint selection strengthening drying) with aluminum focusing reflector lamp shade high capacity special capacitor to regulate the radiation energy of lamp tube with independent heat dissipation centrifugal fan device.
The interior of the lamp box is well ventilated effectively prolonging the service life of UV lamps transformers and capacitors.

产品参数
Parameter
项目 Item 参数/Paramter
有效加工宽度
Effective working width
1300mm
有效加工厚度φ150 Effective working thickness 3-80mm
输送电机功率 Feeding motor power 0.4kw,变频调速,Inverter
排风口径 Exhaust caliber φ150
总功率 Total power 37kw
外形尺寸 Overall dimensions
2500*1700*1900mm
