异型砂光机

Heterotype sander

异型曲面砂光机是实用高效的木制品表面加工设备,提高毛胚打磨和底漆砂光的便捷性。
It is a practical and efficient surface processing equipment for wood products which improves the convenience of rough embryo grinding and primer sanding.
产品亮点
Highlights
采用PLC触摸屏控制系统,所有转速及参数均可在操作屏内部调节短时间内即可熟练操作,更为简易更加人性化。

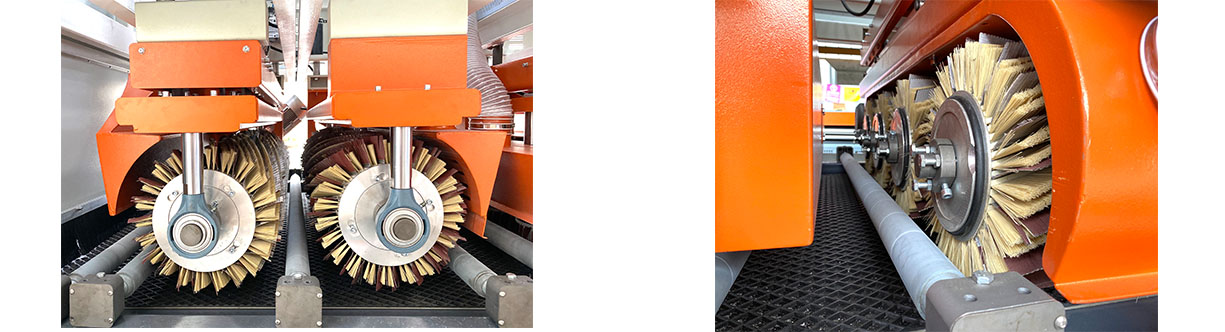

每组砂光单元为可抽出式砂架,能更加便携的更换纱布条及砂光部件,便于维护操作使用。
PLC touch screen control system all speed and parameters can be adjusted inside the operating screen can be skilled operation in a short time more simple more human.
Each group of sanding units is a removable sand frame which can be more portable to replace gauze strips and sanding components so as to facilitate maintenance and operation.

产品参数
Parameter
项目 Item 参数/Paramter
加工宽度 Working width 100-1300mm
加工厚度 Working thickness 10-100mm
输送电机功率 Feeding motor power 2.2kw,变频调速,Inverter
送料速度 Feeding speed 5-25m/min
总功率 Total power 13.95kw
外形尺寸 Overall dimensions 5300mmX2200mmX2100mm
