重型补土机

Heavy Duty Putty Machine

用于填充中密度板或其他使用,UV光固化填充剂板材,能将板材凹进去的毛孔填平,达到平滑的效果,并将多余油漆刮走回收再利用,能完全免去手工填补,大大提高生产效率。
This machine is used for filling medium density board or other uses.uv light curing filler board can fill the pores of the board to reach a smooth effect and scrape off the excess paint for recycling which can avoid manual filling thus greatly improving the production efficiency.

产品亮点
Highlights

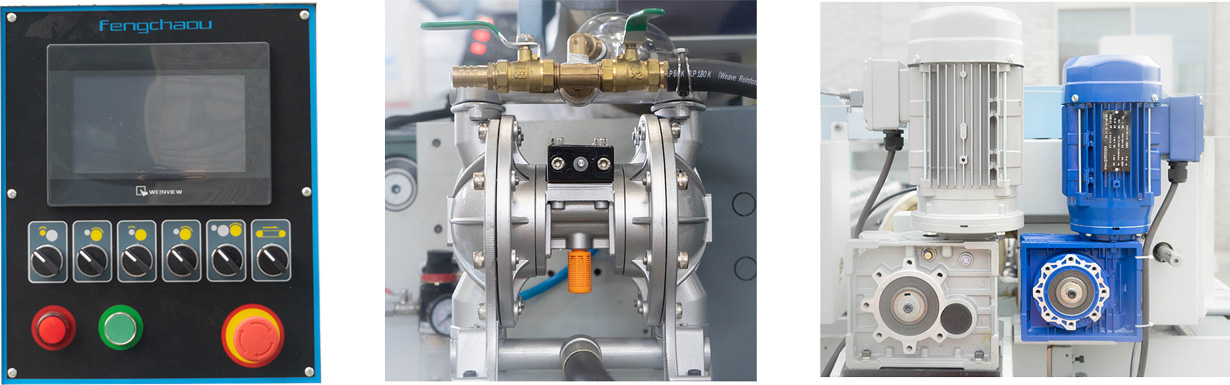

刮补轮可前后移动装置,采用一体式铝合金外壳蜗轮蜗杆电组,刮补轮采用进口材质胶刮刀,可调角度以及水平前后位置。
控制电箱采用分离式可更好的用于机器的维护与面板.保养采用触摸型控制。

The scraping and repairing wheel can move the device back and forth adopting the integral aluminum alloy shell worm wheel and worm electric set the scraping and repairing wheel using the imported material rubber scraper adjustable Angle and horizontal front and rear position.
The control box adopts separate typewhich can be better used for the maintenance and maintenance of the machine.touch type control panel.


产品参数
Parameter
项目 Item 参数/Paramter
加工宽度 Working width 1300mm
加工厚度 Working thickness 3-80mm
输送电机功率 Feeding motor power 1.5kw,变频调速,Inverter
加温功率 Heating power 4kw
总功率 Total power 12.7kw
外形尺寸 Overall dimensions 2100*2600*1600mm
