首页 > 产品中心 >9头线条砂光机

9头线条砂光机

9 Heads Line Sander

采用多点分段多角度压料方式,能顺利输送各种表面异形的工件,防止砂磨进行时工件的上下跳动和纠正工件的上下弯曲。
The method of multi-point and multi-angle pressing material can be used to transport various surface shaped workpieces smoothly, so as to prevent the workpiece from beating up and down and correct the workpiece's bending up and down.

产品亮点
Highlights

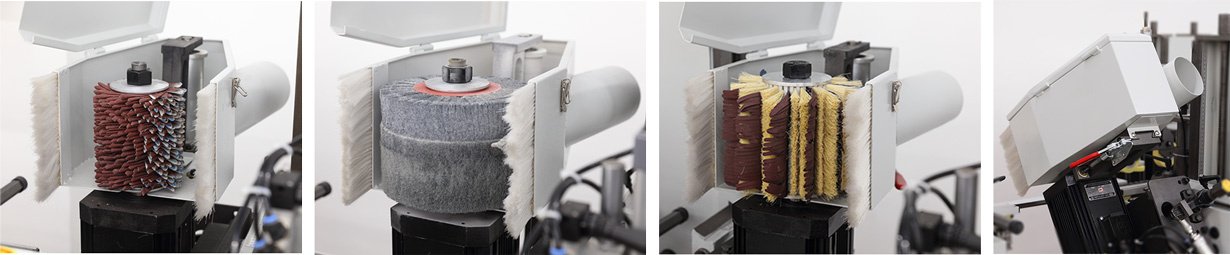

专业针对各种线条的仿形砂光,使用砂带、八角砂片、砂布条轮、飞翼轮、尼龙轮等研磨材料调整为适合于工件表面的形状,在砂头电机的带动下对工件进行仿形研磨;针对线条上的局部大平面,使用砂带研磨,可以节省材料成本。
有效砂光在95%以上,完全可替代繁琐的手工打磨。

Specially for the imitation sanding of various lines, the use of sand belts, octagonalsand sheets, sand cloth strips, flying wing  wheels, nylon wheels and other grinding materials to adjust the shape suitable for the surthe workpiece, driven by the sand head motor. The workpiece is modeledand ground; For the local large plane on the line,the use of sand belt grinding can save material costs.
Effective sand at 95 % or more, completely can replace the cumbersome manual grinding.


产品参数
Parameter
项目 Item 参数/Paramter
加工件宽度范围 Processing Width Range 20-200mm
加工件厚度范围 Processing thickness range 3-60mm
输送电机功率 Feeding motor power
0.55kw×8,变频调速,Inverter
工作气压 Working  pressure 0.6MPa
总功率 Total power 24.2KW
外形尺寸 Overall dimensions 6300*1500*1550mm
