首页 > 产品中心 >真空喷涂机

真空喷涂机

Vaccum coater

专业为家具线条、平面板、壁板及各类型材喷涂水性漆和UV漆而特殊设计。
This machine is specially designed for spraying waterborne paint and UV paint on furniture lines flat boards wall boards and various profiles.

产品亮点
Highlights
整个涂装过程都在真空箱体内进行涂料100%不断循环利用不会浪费任何涂料以达到最高生产效益.
独立的压轮与进料挡板系统可保证工作中传输的流畅(还可选配气动压料).

The whole coating process is carried out in the vacuum cabinet the coating is recycled 100% continuously and no coating is wasted to achieve the highest production efficiency.

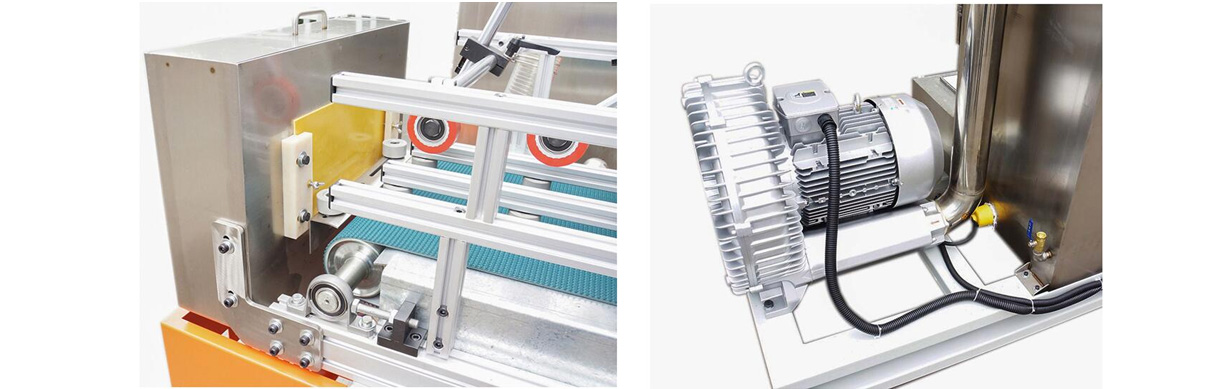

Independent pressure wheel and feed baffle system can ensure the smooth transmission of work (also optional pneumatic pressure).

产品参数
Parameter
项目 Item 参数/Paramter
加工宽度 Working width 20-280mm
加工厚度 Working thickness 10-80mm
输送电机功率 Feeding motor power 0.75kw,变频调速,Inverter
工作气压 Working  pressure 0.8mpa
总功率 Total power 23kw
外形尺寸 Overall dimensions 2500*3000*2010mm
