八灯立体UV

Eight-lamp UV Dryer

用于家具线条、平面板、壁板及各类型材喷漆后的干燥。

The machine is suitable for drying furniture lines flat boards wall boards and all kinds of profiles after painting.

产品视频

产品亮点

Highlights

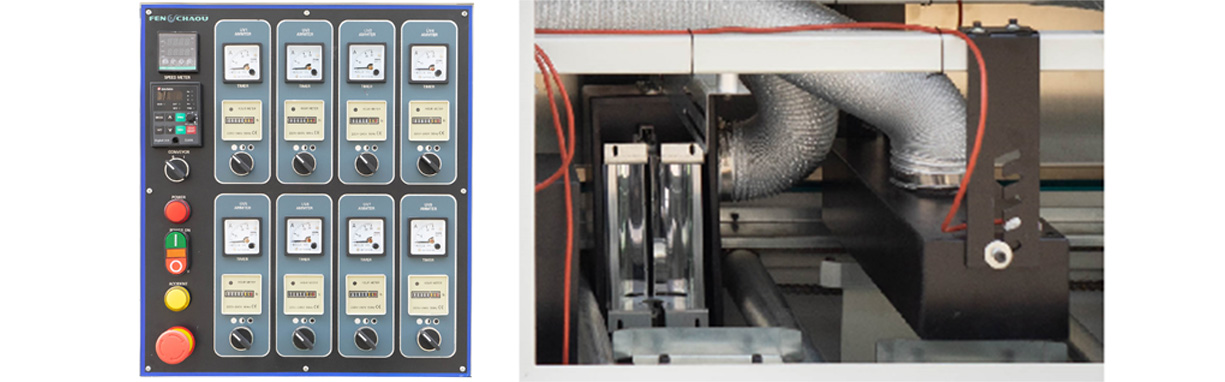

机架内有独立散热装置通过管道连接每支灯外罩散热效果非常好。
输送采用45号钢材制作的辊筒，并经过电镀处理增加了辊筒的耐磨性及加长了使用寿命。

There is an independent heat dissipation device connected to each lamp cover through pipes in the frame and the heat dissipation effect is very good.
The roller made of no.45 steel is transported and electroplated to increase wear resistance and prolong service life.

产品参数

Parameter

项目	Item	参数/Paramter
加工宽度	Working width	20-380mm
加工厚度	Working thickness	10-80mm
输送电机功率	Feeding motor power	0.75kw，变频调速，Inverter
吹风风机功率	Blower power	0.3kw
总功率	Total power	38kw
外形尺寸	Overall dimensions	26609552200mm
