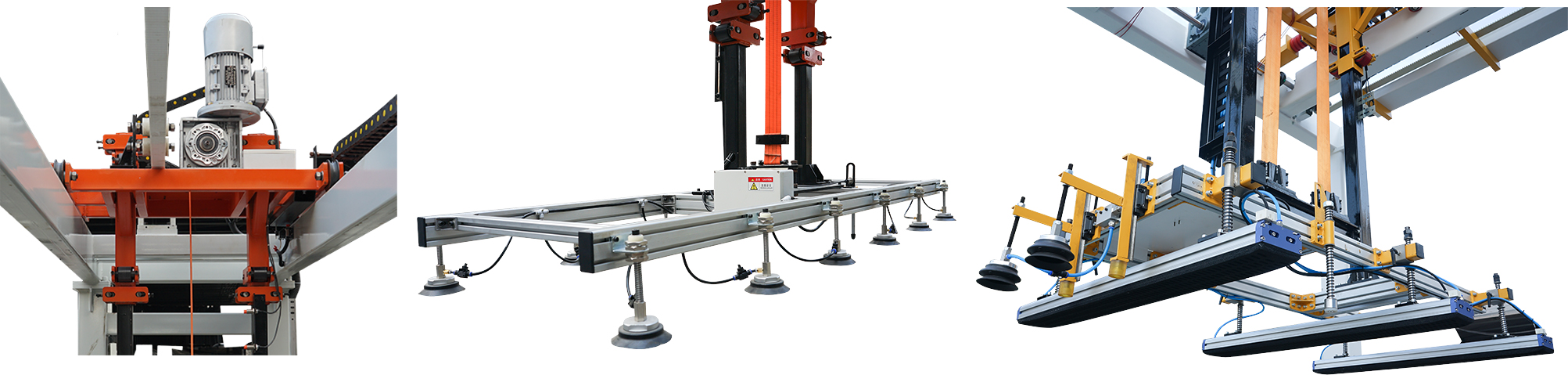

龙门式自动上下料机

Roller-conveyor

本机主要是代替人工进行上下搬运工件,适用一般板材,铁板等批量生产材料的上料及下料。
This machine is mainly used for moving up and down parts instead of manual work. It is suitable for the loading and discharging of general plate iron plate and other mass production materials.

产品亮点
Highlights
本机采用侧边上料的方式不需要地滚,上料下料及搬运方便快捷。
滑动式吸盘结构,可根据板材大小来调整吸盘之间的间距,确保两组吸盘同时吸起板材。

The machine adopts side feeding method which is convenient and quick for loading unloading and handling.
Sliding sucker structure according to the size of the plate to adjust the distance between sucker ensure that two groups of sucker at the same time sucked up the plate.


产品参数
Parameter
项目 Item 参数/Paramter
加工宽度 Working width 1300mm
加工厚度 Working thickness 3-80mm
输送电机功率 Feeding motor power 1.5kw,变频调速,Inverter
送料速度 Feeding speed 5-20m/min
总功率 Total power 5kw
外形尺寸 Overall dimensions 4700*1200*3200mm
